Tuesday, May 30, 2006

More pictures from the panoramic camera

Some more pics from the ultrawide camera for your enjoyment. You can now buy one of these cameras from me on ebay too.

Click on the pics to see a larger version.




Monday, May 29, 2006

Foldex 20 6x9 pinhole folder on Ebay


Here's the lastest project - strictly to fund my film habit! :o) It's a Fodex 20 folder that uses 120 film (and 620 film too, if you happen to have some lying around!). This camera will do both- the winder spools have slots for either type. Not that you'll have 620 film, but it is historically curious. The camera came with a metal 620 spool still in it, suggesting it's been a while since this camera put light to film.

Surgery was as follows: the simple meniscus lens (think thick contact lens) was removed, a 0.39mm pinhole installed, and a threaded socket mounted for using a cable release. Simple! The test roll showed that everything is working as planned. I'd keep it, but I'm going to build my own 6x12 or 6x18 soon anyway. This one was strictly for resale - but I was tempted to keep it after seeing those sharp, BIG negs!

Here you can see the pinhole mounted where the lens was, and the surrounding metal blacked out with tape and magic marker.

The bellows are in great shape!

Here's a closeup of the shutter with the homemade cable release socket. You can see the pinhole inside the shutter assembly. The release socket is a small eye hook screwed and epoxyed into the shutter casing, with a small nut epoxyed onto it. It works great, and it's not going anywhere either. Funny that this camera didn't have a provision for cable release.

For the test roll I took the camera down to a wetland near my house. It was a bit breezy, so some of the blur is from the wind (especially the closeup below). All systems are go!



Here's a detail of the previous image enlarged to show the sharpness of the image. I wonder if the pinhole would have outperformed the original crappy lens?

If you are interested in bidding on this camera click on the "Buy a pinhole on Ebay" link in the sidebar to see a list of my current auctions.

Friday, May 26, 2006

A flurry of projects & pics

Wow, it's been a creative few days! Here's what's up:

The homemade 6x6 folder is working GREAT,
I've redone the pano-pin cam, and it's now working great too,
I've set up shop at home for developing my own B&W negs, and
The 6x9 cm Foldex 20 arrived and is now converted over to pinhole (90mm FL, 0.40mm pinhole, =f225). Test roll is in process.

Whew! Here are some pictures from the cams:

Trees in the wind - 6x6 at 50mm

UBC Main Library reconstruction - 6x6 at 50mm

Derelict bicycles, TWU campus - Pano-pin

There are further technical details available on my posts on f295. Enjoy!

Wednesday, May 24, 2006

Daniel's Agfa Clack Conversion

I received another email from Daniel over in France describing his second pinhole project. He's now used my pinhole to convert an Afga Clack to pinhole shooting. Clacks are old 6x9 cameras for 120 roll film that are popular for such conversions. This way you get the film transport/shutter/tripod mount made for you - which is easier than making it yourself. I'd love to convert a Clack someday too!

Daniel writes:

Hello

I found an AgfaClack camera on ebay for $10 it is more easy than the Horseman.

Your pinhole is now on the AgfaClack

And the photo of my résidence Compostelle at Pessac near Bordeaux

note : the film is agfa 25ISO ORTHOCHROMATQUE. (appropriate choice of film for a Clack!)

Your pinhole (in french sténopé) is very good !
à plus
Daniel




Here's Daniel's Clack with my pinhole installed.

A picture taken with the converted Clack. The camera and the pinhole seem to be performing well. What a great pinhole setup!

The 6x9 neg is one of my favorite sizes (I have an old Franka Rolfix that shoots 6x9 with a 105mm Schneider lens). That camera is in far too nice condition to convert, though. Right now I have an old Foldex 20 coming from a recent Ebay win that I will be converting sometime soon. The Foldex 20 is an American-made el-cheapo folder with an awful lens - so I won't feel too bad when I destroy it!

I now have film in the new homemade folder, and I should have the test roll finished and developed in a few days. Thanks for the note, Daniel. I'll look forward to seeing some more images!

Monday, May 22, 2006

Sign up for Feedblitz!

If you'd like to recieve automatic email notification when I post new material on this blog, you can now sign up using the widget in the sidebar.

Enjoy!

Saturday, May 20, 2006

Homemade 6x6 folder for pinhole


Here's my most ambitious pinhole project yet - a 6x6 camera for 120 roll film with a bellows that can be pulled in to 50mm and extended to 90mm. The camera also has two pinholes - a 0.27 mm for the 50mm setting (equals f185) and a 0.36 mm pinhole for 90mm (equals f250).

The body cut to size and ready for bending into a three-sided box, plus top plate.

The body bent into shape with the top plate attached. This plate will swing up to allow the film spools to be loaded into the camera.

Here's the lightproofing for the top plate. The tape (it's taped from both sides) folds inside the camera to provide a flexible light seal.


I originally thought I would make the swing-out plate the bottom plate (as in this photo), but I later changed it to the top plate.

Detail of the winder - it's a 8-32 nylon bolt from Home depot that I shaved down with an Olfa cutter to fit snugly inside the film take up spool. There is a lock washer between the brass nuts to keep them tensioned on each other. I later put a brass washer between the top plate and the first nut to reduce friction. There is a washer and nut on the other side, topped by the knurled knob. The knob and the nut are tensioned together, leaving the tension on the plate sufficient to hold the spool in place (to prevent unwinding) but still turn freely.

Making the bellows is actually quite easy - lay out strips of hockey tape on a clean surface (sticky side up) and temporarily tape their edges down to keep them flat. Lay out your stiffeners as per the photo, and then tape over them with another layer of tape. The only trick is getting the edges lined up right when you fold it into a (square) tube - you want the spacing to be the same as for the other joints.


The finished bellows ready for mounting into the camera.

The camera body cut out for the bellows.

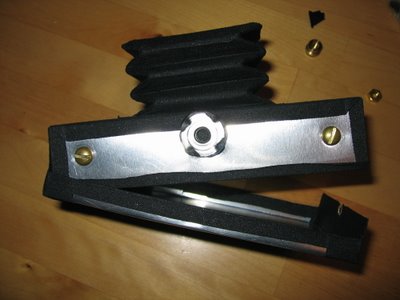

Detail of the tripod mount - a 1/4 x 20 T-nut designed for wood construction. It has four sharp "teeth" around it that I used to pierce the aluminum and then crimp over to hold it firmly in place. I first pressed it into the drilled hole to mark the bottom plate with the teeth, then started the holes for the teeth with the tip of the Olfa knife, and then pushed them through. There is also a gasket of bicycle innertube rubber between the nut and the bottom plate to keep everything light-tight.

The tripod mount from the inside. I light-proofed the nut by putting a small piece of foam into the bore and crimping in a small circle of aluminum sheeting (cut with a hole punch).

Here's the whole camera at this stage - bellows taped in, tripod mount installed. You can see the winding bolt is now in the flexible top plate. The non-winding spool bolts are lightproofed with rubber washers. It took some care to get the nuts into exactly the right spot so that everything is precisely aligned for film transport. The compressibility of the rubber washers helped this process.

Here's the camera with the film mask installed and an old roll of film I used for spacing. You can see I've taped over the tripod mount, The film mask is essentially a small aluminum box with a 6x6 cm cutout. The edges of the frame are smooth enough that rollers are not necessary, but the cutout edges will be covered with smooth tape to prevent them from scratching the emulsion.

Here's the camera back just after installation. It's hinged with tape on the one side and clasped to the body on the other with a bolt and knurled knob. Note the notch in the edge of the door to allow the bolt to seat properly. The brass washer goes on the outside of the door to prevent the knob from marring it.

Detail of the back closing knob.

Bottom view, back installed.

Design and dry fitting of the "lens"board into the bellows.

Lensboard installed with side flanges bent over and drilled for four 6x32 bolts. These bolts will hold the lensboard to the stays.

Another view

The short stays (for 50mm) are fixed to the camera, but the long stays are not - they sit inside the short stays and are held in place solely by the bellows tension.

The long stays (for 90mm)


Here's a detail of the pinhole selector test-mounted on a scrap piece of aluminum to get the hole spacing right. I had to turn the flash off, so it's a little blurry. The top pinhole is 0.36mm and the bottom one is 0.27mm.

The lensboard drilled and ready for mounting.

The selector installed and the shutter constructed. The notch on the shutter slider locks under the selector screw to give a consistent shutter position when pushed open with the cable release.


The shutter and cable release installed. A rubber band pulls the shutter closed.

The cable release is mounted in a small flange bolted into the stay holder bolts.

The camera ready for drilling the frame counter window.

I was stumped for quite a while for a source of red acetate for the counter window. Then, one day at work I noticed a set of page dividers- the kind with the plastic tabs for inserting paper labels. The one tab was a nice ruby red. I peeled it off the paper, cut it into four pieces, cleaned off the paper and residual glue with 95% ethanol, and taped the stack of four into the camera over the counter hole. The four layers makes it nice and dark, but clear enough to see the film numbers.

I made a cover for the counter window to shade it when not in use.



The finished camera, ready to go! I should be able to get 120 film in a few days (120 isn't available in my hometown, so a trip into the city is in order). If you want to try a similar build and need more details, leave a comment or send me a message through f295 (I'm member "gabriel531").

Wednesday, May 17, 2006

Pinhole photos from France!

Well, my handmade custom pinholes can now be called "world famous." :o) These are the first two images captured by Daniel Gourribon, who is newly exploring pinhole photography in France. He seems to be using some sort of technical camera - I've asked for further details. Thanks for sending these, Daniel!


"My first photo pinhole.
film 400iso, exposure 3s,f:70 f=25mm, hazy sun .
On foreground the rail of the bellows and lensboard of the camera."



"My second photo pinhole.
film 25iso, exposure 1Min10s,f:228 f=75mm, hazy sun"


Daniel sent more info and pics of his (VERY NICE!) camera (a Horseman 980 technical camera, 120 roll film):



"Front view photo: you can see the shutter (black tape)."


"Close up: your pinhole and the shutter."

Thanks Daniel! You can check out his very cool site here: he takes digital pictures with a RC model airplane!
